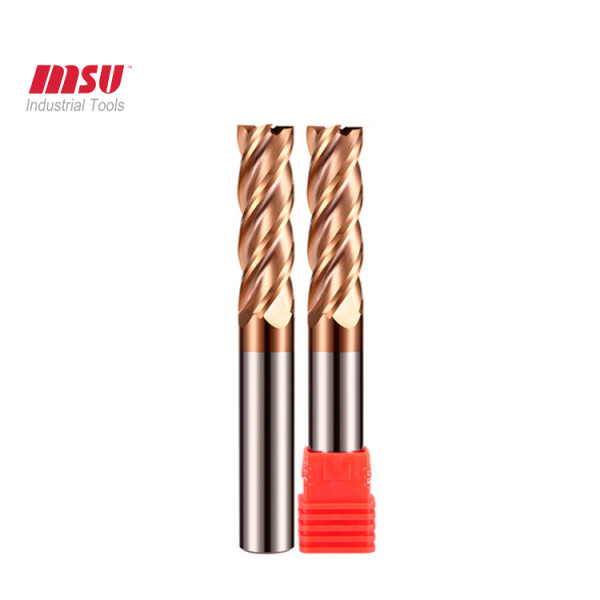

Extra long square end mill -HRC55-4 Flute

Extra long square end mill -HRC55-4 Flute

Extra long square end mill -HRC55-4 Flute
Extra long square end mill -HRC55-4 FluteExtra long square end mill -HRC55-4 FluteExtra long square end mill -HRC55-4 FluteExtra long square end mill -HRC55-4 FluteExtra long square end mill -HRC55-4 Flute
CategoriesFlat End Mills
BrandMSUTOOLS
ModelD1mm-20mm
MaterialSolid Carbide
Internal CoolingWithout
No of Cutting Flute4 Flutes
TypeFlattened
CoatingTiSin
Cutting DirectionRight - Hand
Helix Angle35°
Precision±0.01
WorkpieceCarbon Steel/ Alloy Steel/Grey Cast Iron
ApplicationMilling
Cutting Diameter1mm-20mm
Full Length50mm/75mm/100mm/150mm
FOB portAny ports of China
Terms of PaymentMoneyGram, T/T, Paypal
Update Time2021-12-03
Detail Information
 Flute Flat Carbide End Mill Cutters HRC55 For Steel
Description
4 Flute Carbide End Mill  HRC55
Hardness
HRC55
Coating
Tisin
Helix Angle
35°
Workpiece
Carbon Steel/ Alloy Steel/Grey Cast Iron/ Nodular Cast Iron
Application
Side Milling and Face Milling/Slotting

Features

Extra long length square end mill  is the longest flute length, single end, general purpose mill, where the corners are sharp and generate a 90° corner.  The term "general purpose" means that the mills are manufactured with a 30° helix angle, have a primary and secondary clearance angle on the OD's, and are center cutting.  They can be used for plunging, grooving, side milling, face milling, and counter boring
